    1000KG CK Chain Pulley Hoist , Manual Chain Pulley Block

    Ask Lasest Price
    Brand Name : VITALI-INTL
    Model Number : CK1
    Certification : CE, GS, ISO 9001
    Price : Call or Email for quote
    Payment Terms : T/T, L/C
    Supply Ability : 10,000 pcs per month
    Delivery Time : Within 45 days after order confirmation
    • Product Details
    • Company Profile

    1000KG CK Chain Pulley Hoist , Manual Chain Pulley Block

    1 tonne Chain Block CK
    competitive Chain Block CK with industrial performance
    Chain Block type CK is competitive Chain Block CK with industrial performance.
    They are manufactured by VITALI-INTL Lifting Equipment Ltd, in accordance with European and American standards.
    The whole series of Chain Block type CK contains 0.5 tonne, 1 tonne, 1.5 tonne, 2 tonne, 3 tonne, 5 tonne, 10 tonne, 20 tonne and 30 tonne in load capacity. They are mainly exported to American and European markets.
    Standard Features
    1. Chain Block CK Type meets all pertinent world standards
    2. Hardened steel rollers supporting the load sheaves run smoother and last longer than bearings
    3. Spur gear efficiency reduces operator effort. Double pawl and double guide rollers enhance performance, safety and reliability
    4. Load chain is alloy steel grade 80 according to ISO16877
    5. Deformation indicators – Two strategically placed marks allows for measurement to determine if the throat opening has changed thus indicating abuse or overload
    6. Equipped with wide throat top and bottom drop forged hooks that are designed to bend slowly to warn of overloads
    7. Every chain block is operationally tested to 150% of the rated capacity and issued an individual test certificate with unique serial number
    8. Safety factor: 4 times of the rated capacity
    9. Easy remove top hook for 0.5 t to 3 t
    10. Overload protection system
    11. Caged roller bearings on load sprocket
    12. Zinc plated load chain
    13. Cast safety latches
    14. Cr plated side plate assemblies
    15. Thrust bearings in bottom hook assembly
    VITALI-INTL Chain Block CK Specification
    Capacity(tonnes)0.511.5235102030
    Product No.CK0.5CK1CK1.5CK2CK3CK5CK10CK20CK30
    No.of Falls1111224812
    Load Chain(mm)6x186x188x248x248x2410x3010x3010x3010x30
    Pull to lift rated load(N)267375357471375399392392415
    Proof load(tonnes)0.751.52.2534.57.51525.037.5
    Hand chain(mm)5x25x17
    Standard Lift(m)333333555
    Net weight(kg)8.510.516.516.82438.567205.5273
    Gross weight(kg)8.81117.517.8254074217290
    Extra weight per meter(kg)1.71.72.32.33.75.39.719.429

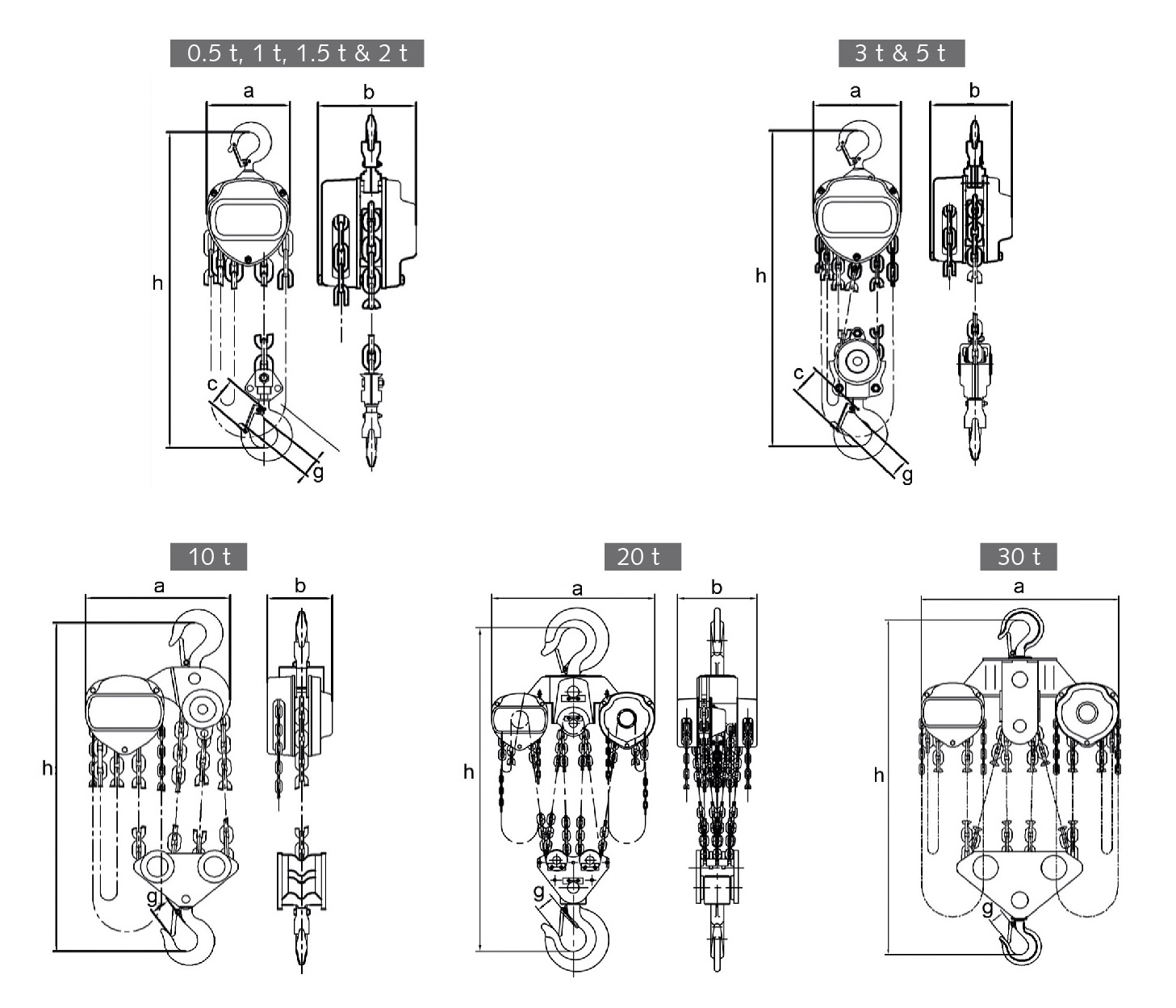

    Dimensionsa(mm)125147183183183214.5388635705
    b(mm)123140158158158185185195350
    c(mm)3545475262.578---
    h(mm)2803063684445206167001,0001,500
    g(mm)273333.53743.551648282
    About VITALI-INTL Lifting Equipment Ltd
    VITALI-INTL Lifting Equipment Ltd, is one of the most advanced manual hoist factories in Asia. The company has registered the trademark with "VITALI-INTL" in Mainland China, Hong Kong China and some overseas countries.
    The company's philosophy of management and quality control are based on European and American standards.Their high quality manual hoists are mainly exported to American and European markets.
    The heat treatment and load chain production are the most critical production processes of the company. Additionally, they are equipped with advance scientific testing instruments, metallographic microscope, measuring projector, salt spray tester, endurance test machine and destruction test machine up to 100 tonnes.
    Anfeng Lifting & Rigging is authorized distributor for all the products made by VITALI-INTL Lifting Equipment.
