1 -20 Ton Chain Pulley Blocks CK type with hand chain

Ask Lasest Price
Brand Name :	VITALI-INTL
Model Number :	CK1-CK1.5-CK2-CK3-CK5-CK10-CK20
Certification :	CE, GS, ISO 9001
Price :	Call or Email for quote
Payment Terms :	T/T, L/C
Supply Ability :	10,000 pcs per month
Delivery Time :	Within 45 days after order confirmation

Add to Cart

Product Details
Company Profile

1 -20 Ton Chain Pulley Blocks CK type with hand chain

1tonne Chain Block K-II

top-of-the-line chain block

Product Description

Chain Block type K-II is top-of-the-line chain block.

The hoists are manufactured by VITALI-INTL Lifting Equipment Ltd, based on European and American standards.

The whole series of Chain Block type K-II (top-of-the-line chain block) contains 0.25 tonne, 0.5 tonne, 1 tonne, 1.5 tonne, 2 tonne, 3 tonne, 3.2 tonne, 5 tonne, 7.5 tonne, 10 tonne, 15 tonne, 20 tonne, 30 tonne and 50 tonne in load capacity. They are mainly exported to American and European markets.

Standard Features

1. Seal type caged ball bearings #21 & #21A on load sprocket

2. Seal type caged ball bearings #21B & caged roller bearings #31B on the pinion shaft (minimize manual effort thanks to efficient drive train)

3. Superior design of top hook holders for double / several columns of load chains

4. Experience exceptional durability thanks to all-steel construction featuring rugged gear case enclosure and handwheel cover

5. Enjoy increased lifting height thanks to low headroom

6. Grade 100 heat-treated galv. alloy chain abrasion and wear while minimizing chain weight

7. Reinforce double pawl brake system and larger dia. pawl springs ensure reliable brake

8. Overload protection system

9. Zinc plated load chain

10. Patent fused brake disc

11. Thrust bearings in bottom hook assembly

12. Easy removable top hook

VITALI-INTL Chain Block K-II Specification

Capacity		(tonnes)	0.25	0.5	1	1.5	2	3	3.2	5	7.5	10	10	15	20	30	50
Product No.			K025	K050	K100	K150	K200	K300	K320	K500	K750	K1000A	K1000	K1500	K2000	K3000	K5000
No.of Falls			1	1	1	1	1	2	1	2	3	3	4	6	8	12	20
Load Chain		(mm)	4x12	5x15	6.3x19	7.1x21	8x24	7.1x21	10x28	9x27	9x27	10x28	9x27	9x27	9x27	10x28	10x28
Load Chain Grade			100	100	100	100	100	100	100	100	100	100	100	100	100	100	100
Pull to rated load		(N)	220	219	308	329	375	341	375	335	343	398	353	363	353x2	345x2	345x2
Proof load		(tonnes)	0.375	0.75	1.5	2.25	3.0	4.5	4.8	7.5	11.25	15	15	22.5	25.0	37.5	62.5
Hand chain		(mm)	5x25x18
Standard Lift		(m)	3	3	3	3	3	3	3	3	5	5	5	5	5	5	8
Net weight		(kg)	3.9	10.8	12.4	15.6	20	24	27.4	41	72.4	85.2	94.9	153	205	284	702
Gross weight		(kg)	4.3	11.3	12.9	16.4	21	24.8	28.9	42.5	75.4	93.2	105	166	219	301	816
Extra weight per meter		(kg)	0.76	1.5	1.8	2.1	2.3	3.2	3.2	4.4	6.2	7.6	7.9	11.4	15.8	29.3	46

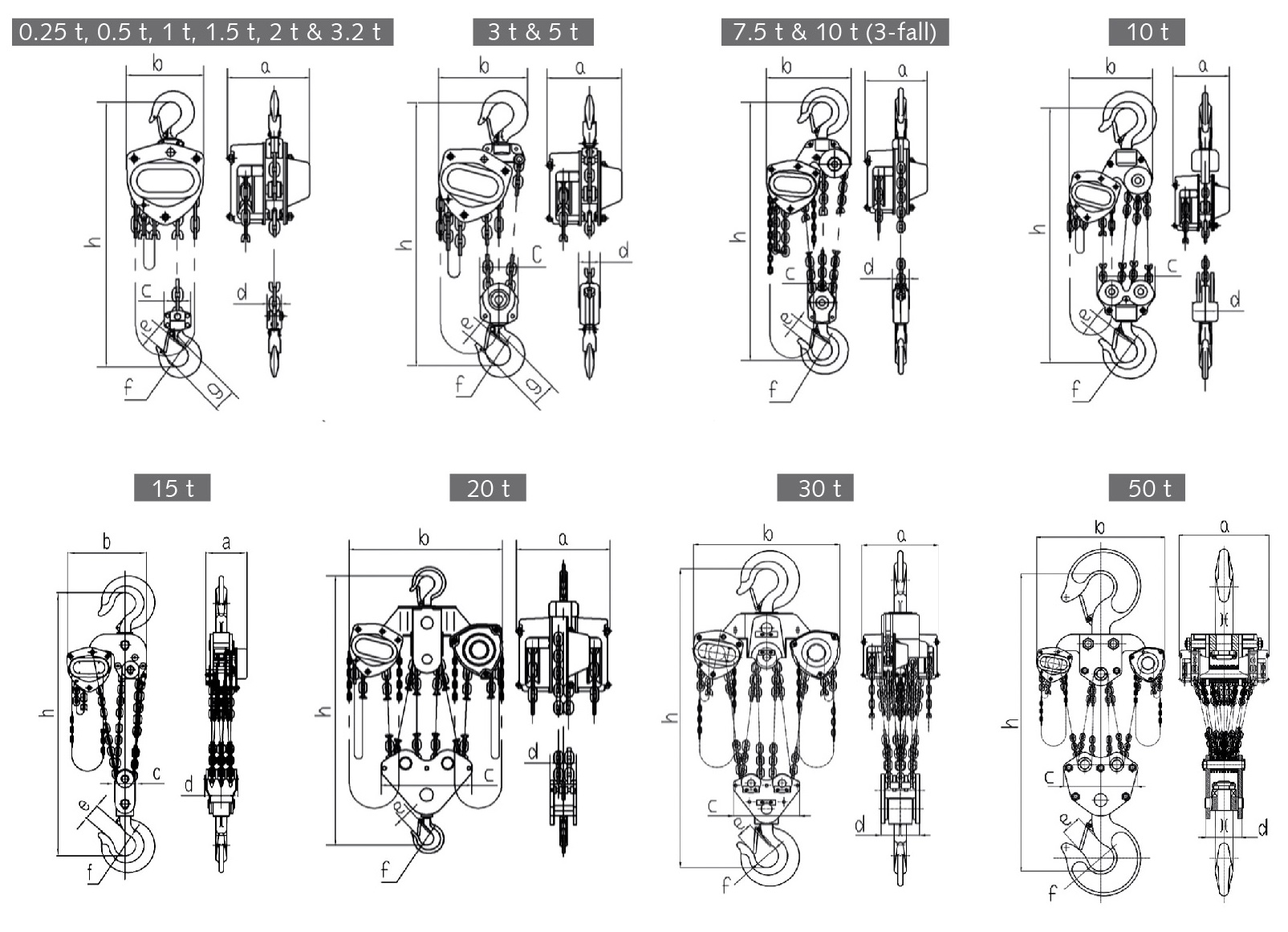

Dimensions	a	(mm)	96	130.5	161.5	170	183.5	170	190.5	192	192	190.5	192	220	230	360	585
	b	(mm)	109	139.5	161	182	202.5	235	235	282	373	356	360.5	492	655	680	832
	c	(mm)	29.5	43	51	64	64	106	68.5	133	120	120	263	110	286	306	482
	d	(mm)	21	25	30	34	34	53	38.6	64	70	70	95	170	123	180	235
	e	(mm)	27	27	33	33.5	37	43.5	43	51	64	64	64	80	82	82	133
	f	(mm)	32	32	40	42	46	52	49.5	60	85	85	85	100	110	110	170
	g	(mm)	35.5	35	45	47	52	62.5	62	79	-	-	-	-	-	-	-
	h	(mm)	250	285	295	350	375	510	485	600	740	760	760	1,000	1,150	1,250	1,700

About VITALI-INTL Lifting Equipment Ltd

VITALI-INTL Lifting Equipment Ltd, is one of the most advanced manual hoist factories in Asia. The company has registered the trademark with "VITALI-INTL" in Mainland China, Hong Kong China and some overseas countries.

The company's philosophy of management and quality control are based on European and American standards.Their high quality manual hoists are mainly exported to American and European markets.

The heat treatment and load chain production are the most critical production processes of the company. Additionally, they are equipped with advance scientific testing instruments, metallographic microscope, measuring projector, salt spray tester, endurance test machine and destruction test machine up to 100 tonnes.

Anfeng Lifting & Rigging is authorized distributor for all the products made by VITALI-INTL Lifting Equipment.

About Anfeng Lifting & Rigging

Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.

Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.

With 20 years of experience in lifting and rigging industry, Anfeng not only provides customers with high-quality lifting and rigging products, but also provides complete lifting solutions according to different projects, such as technical consultation, solution design, product planning, onsite assistance and after-sales support.
